WHAT IS A
LASER POWDER BED FUSION?
Laser powder bed fusion (LPBF) is an additive manufacturing (AM) technology that uses a laser to locally melt metal powder in a layer-by-layer fashion according to a user-supplied CAD model. The final product is a three-dimensional part intended to replicate the user-supplied CAD (Computer-aided design) geometry.
MACHINE
SPECIFICATIONS
- Model: Aconity MIDI
- Maximum possible build space: Ø 170 mm x H 200 mm
- Laser power: 400 W
- Number of lasers: 2
- Minimum build layer thickness: 10 µm
- Induction heater to pre-heat build platform up to 1200° C
- Pyrometer to detect overheating and enable measurements of spatial temperature distribution during the build
- Optical camera for in-process monitoring at 30 frames per second (fps)
Frequently Asked Questions
Essentially, any weldable metal can be printed using this machine, including steel, nickel, titanium, and aluminum alloys.
The size of a printed part is limited by dimensions of the build space: Ø 170 mm (6.6”) x H 200 mm (7.9”).
Spatial resolution is governed largely by minimum build layer thickness: 10 μm.
The print time depends on the part size, geometry, and laser settings. Time can range from several hours to more than a day.
This machine has an open architecture, meaning that the operator has nearly complete control over the process settings.

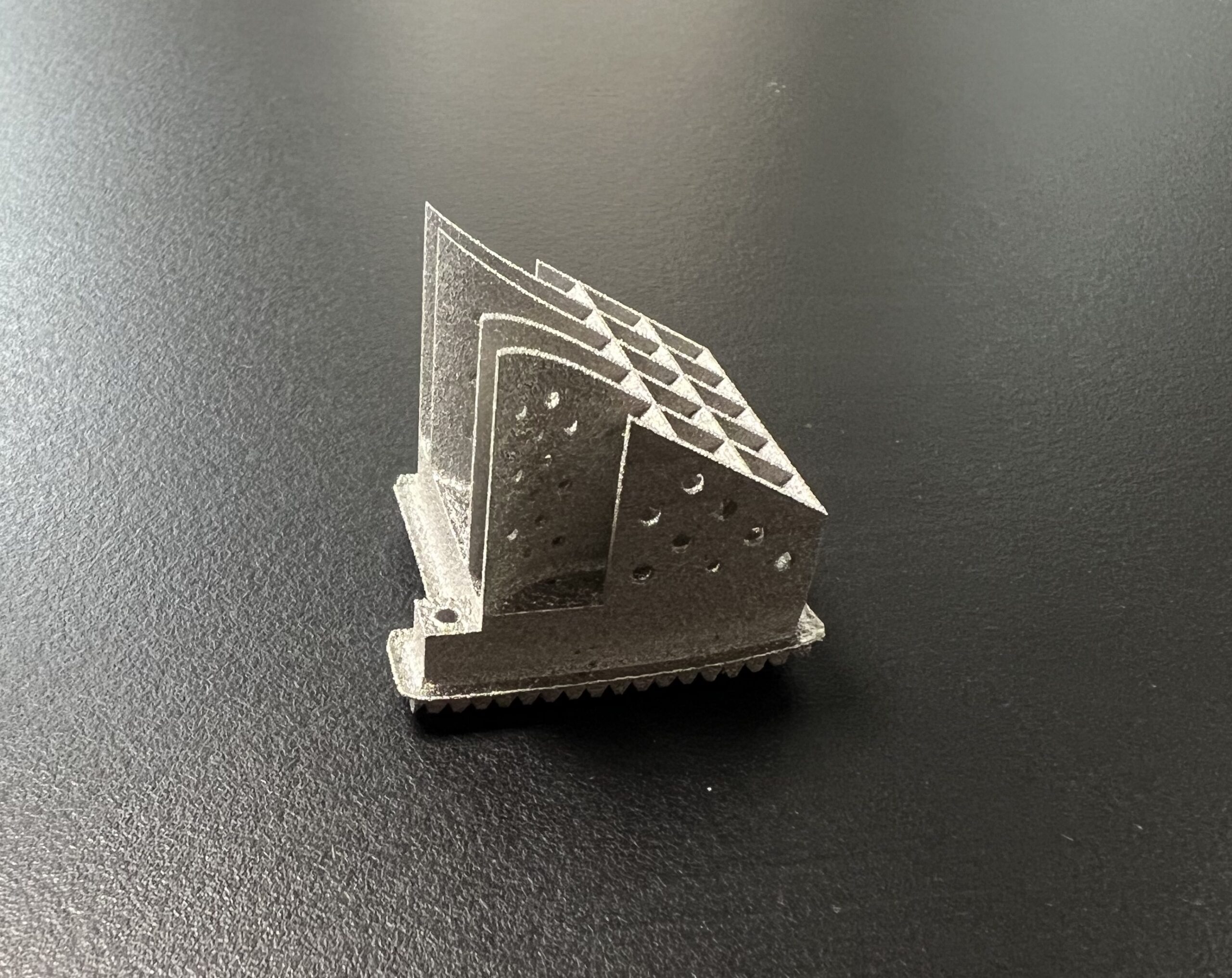

Geometries that are too complex or too intricate to be manufactured using conventional manufacturing techniques are ideally suited for LPBF.
If you would like to learn more or are ready to have a part printed, contact Alik Nielsen.
